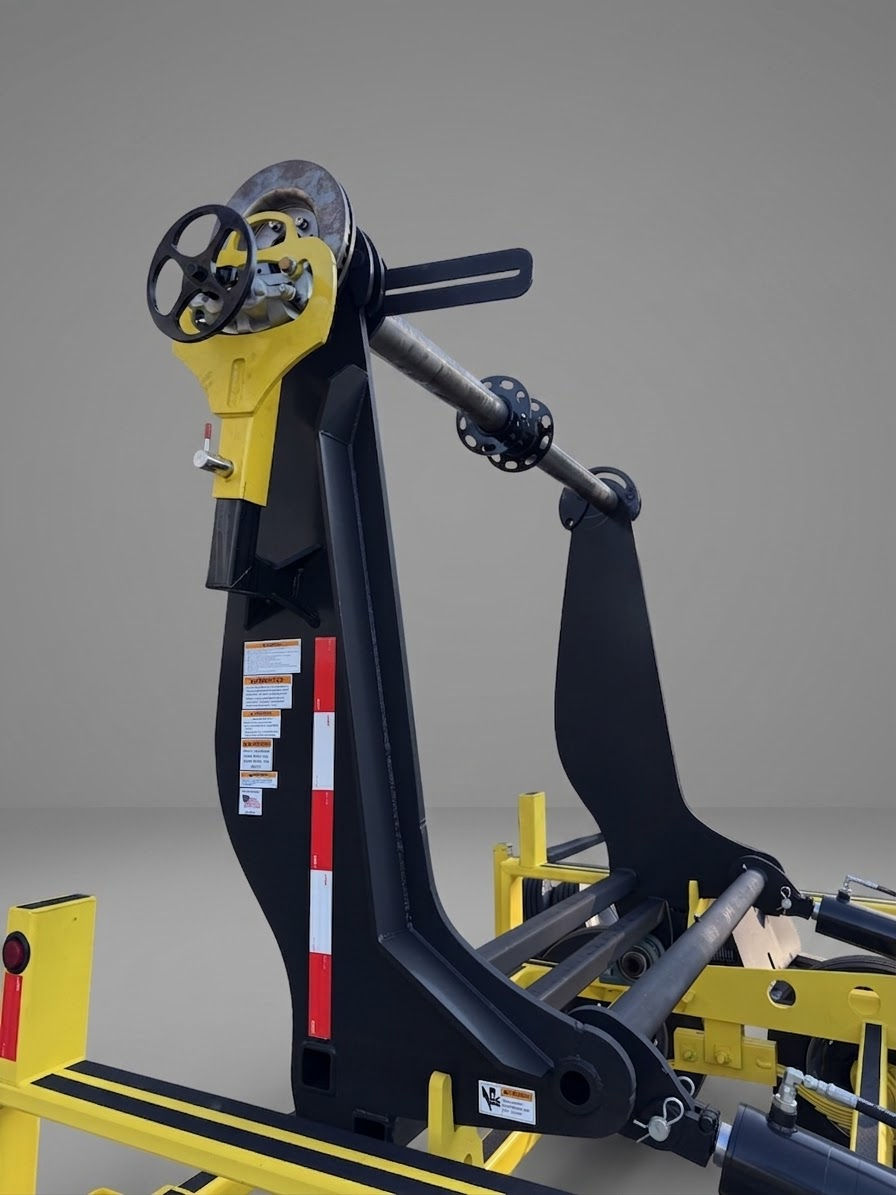

2026 Utiliquip Inc. UMI20000 Series 1
Slide 2 — Specifications:
Load rating: (2) 9,000 lbs (9K) Axle type: Electric Brake (Grease Bath) Brake size: 12¼″ × 3⅜″ electric drum Tube diameter: 4″ straight axle tube Hubface/Spring Center: 75/58 Bolt pattern: 8x6.5 Stud size: 5/8″ Spring mount: Underslung (lower ride height) Lubrication: Grease bath (screw-on grease cap, unitized grease seal)
Slide 3 — Specifications (continued):
Suspension: Tandem leaf spring, slipper style Tire size: ST215/75R17.5, load range E Wheels: 16″ x 6″, 8-lug steel Coupler: Buyers Products B20145 Heavy Duty Adjustable Eye Assembly, 3" ID Forged Steel Eye, Heavy Duty 3" Formed Channel, MGTW 20,000lbs, MVL 2,000lbs, Fasteners and Gussets Frame: 3"x6"x1/4" wall tube and 1" plate rails Electrical: 7-way RV plug, LED sealed lighting Brake control: Breakaway kit with charger Finish: Sandblasted, primed, and Single stage acrylic enamel GVWR: 20,000 lbs (2 x 9,000 lb axles)
Slide 4 — Specifications (cont.):
Overall length: 14 ft Jack: 8000lb drop leg tongue jack, (4) 8000lb rear and corner stability jacks Safety chains: 3/8″ Grade 70 with hooks Fenders: 2"x6"x3/8" wall tubing for heavy duty for integrated structural support Suspension travel: Equalized tandem Documentation: VIN plate, brake certification, owner's manual Warranty: 1-year limited structural and components
Slide 5 — Specifications: Hydraulics & Power Pack
Power unit: 18hp gas electric start internal combustion engine Pump: 22GPM, 2 Stage 4000PSI Aluminum Hydraulic Gear Pump, with Valve Coupling Installation Base 3/4'' NPT Outlet 3600 RPM Reservoir: Hydraulic Fluid Tank 10 Gal Heavy Duty Hydraulic Steel Tank Reservoir, with Strainer Tank Gauge Filter Breather Cap System pressure: 3,000 PSI max, relief-valve protected Cylinders: (2) 5" bore x 24″ stroke, double-acting Hoses/fittings: SAE 100R2 two-wire, JIC swivel ends Controls: Manual spool valve with detent in load lift position Battery: Group 27 deep cycle, lockable steel box Charging: On-board solar trickle charger with 7-way tow-vehicle feed, and stator charging from gasoline engine Fluid: AW-32 hydraulic oil (AW-46 in high-heat service) Filtration: Buyers Products HFA12525 Hydraulic Return Line Filter Assembly, 25 Micron
Slide 6 — Specifications: Payload & ReelPayload capacity: 15,000 lbs (20,000 lb GVWR less 5000 lb tare) Tare weight: 5,000 lbs empty Tongue weight: 10-15% of loaded weight Reel capacity: 1 reel, up to 120″ diameter x 75″ traverse Max reel weight: 15,000 lbs Arbor/spindle: 4″ diameter, (2) 5" adapter bushings for reel holes Tensioning: Manual hand brake with dual piston caliper Reel Lifting: Minimum reel diameter at ground level to drawbar height = 47"
